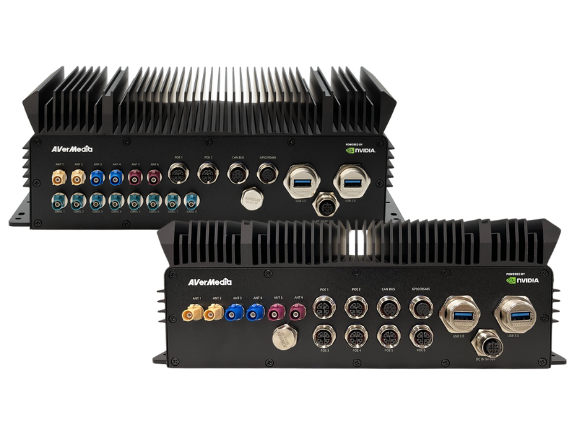

D135OXQ/D135OXD/D135OXP
[Preliminary]
NVIDIA® Jetson Orin NX module
IP65/67 Vehicle System
IP65/67 BOX PC
Quad Fan & Dual Fan & Fanless Product type
2x M12 X-Code for GbE with PoE 802.3af
1x M12 A-Code (Isolated CAN BUS 2.0 Port With Transceiver, 2 port)
2x M20 USB 3.0(Type A)
1x M12 A-Code 12pin (4x GPI & 2x GPO & 1x RS485)
1x M12 B-Code 5pin Power Input
Operating Temperature: -40~80°C (base on SKU)
Optional: Allxon OOB
Waterproof( Must Choose at least one from GMSL2 or PoE)Optional: 8x GMSL2 (FAKRA SMB Plug Z-code)
Optional: 4x PoE (M12 X-Code 8pin, with PoE 802.3af)
Optional: 5x connectors FAKRA for WIFI 6/4G/5G/GPS
