Peripheral - IP67 Combo Antenna

Overview
Where to Buy

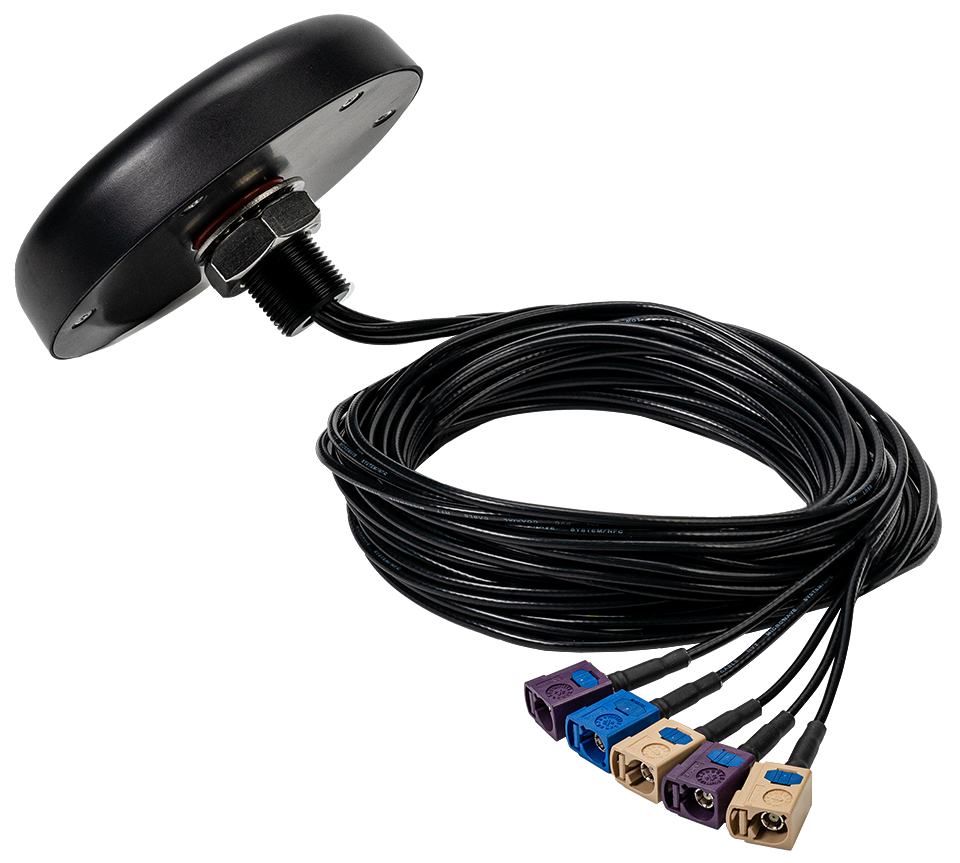

IP67 5 in 1 Combo External FAKRA Antenna

The IP67 5 in 1 Combo External Antenna is designed providing flexible and efficient solutions for embedded systems and IoT applications. It features FAKRA to accommodate 4G/5G modules, enabling high-speed wireless connectivity.


It’s suited for smart city applications, supporting real-time data transmission and infrastructure monitoring; industrial automation, enabling robust machine-to-machine communication and real-time control; and remote surveillance, offering stable connections.

Specifications

Model

IP67 5 in 1 Combo External FAKRA Antenna (DR7715)

Applicable Product

D135

Cable Type

LMR100 (Cable Length: 3,000mm)

Connecter Type

FAKRA female I/C/D Type

Antenna Dimensions

L: 120mm * W: 63mm (included body screw)



DC Voltage/Current

3 ~ 5 V @ GNSS

8 ~14 mA @ GNSS

Impedance

50 Ohm

Waterproof

IP67

Temperature

Operating temperature  -40 °C ~ 85 °C

Storage temperature -40°C ~ 85°C

Package

1x IP67 5 in 1 Combo External FAKRA Antenna

* All specifications are subject to change without prior notice.

×
