How can I start using AVerMedia EzRecorder 330 (ER330) ?

ER330 is a standalone device that performs its function without needing another device, computer, or connection. You can follow the tutorial installation video:


In summary:

-Choose your storage

1. Prepare a Storage Device

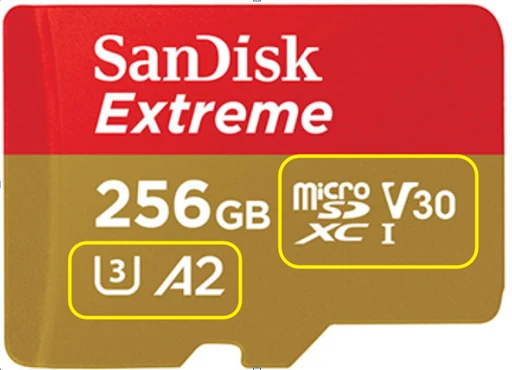

Before recording, please prepare a compatible USB 2.0 external storage device (SSD/HDD), Micro SD card, or NAS (Network Attached Storage) as the recording storage device.
For supported specifications and the compatibility list of external storage devices and Micro SD cards, please refer to the following FAQ:
https://www.avermedia.com/support/faq/ER330-Recommended-SD-card-size-GrRKl9xj-0d6xQNnE-9Q0Vkmlv-7D97NnL8
For instructions on how to set up and use NAS storage, please refer to the following FAQ:
https://www.avermedia.com/support/faq/how-to-set-up-your-nas-using-er330

2. Connect the Power
When using the ER330 for standalone recording, please use the power adapter included in the product package.
Connect the power adapter to a power outlet, and then connect the power cable to the POWER port on the ER330.
Please do not connect the ER330 to a computer via USB as a power source.

3. Connect HDMI
Connect the HDMI cable from your HDMI source device (such as a game console) to the HDMI IN port on the ER330.
Then, use another HDMI cable to connect the HDMI OUT port on the ER330 to a TV or monitor.

4. Start Recording
Insert a Micro SD card into the ER330's Micro SD card slot, or connect an external storage device.
Wait until the red LED indicator stops flashing and turns solid blue, indicating that the ER330 is ready.
Press the Record button to start recording. The outer LED ring will display a breathing red light, indicating that recording is in progress.

Important Notes
During recording, do not remove the Micro SD card, external storage device, or HDMI cable, as doing so may interrupt the recording or cause the recorded file to become corrupted.

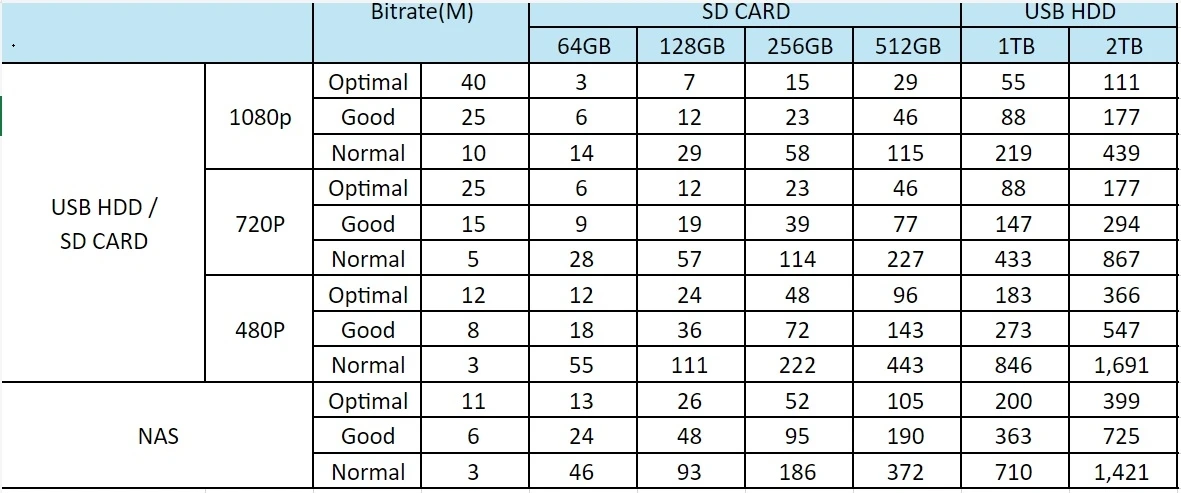

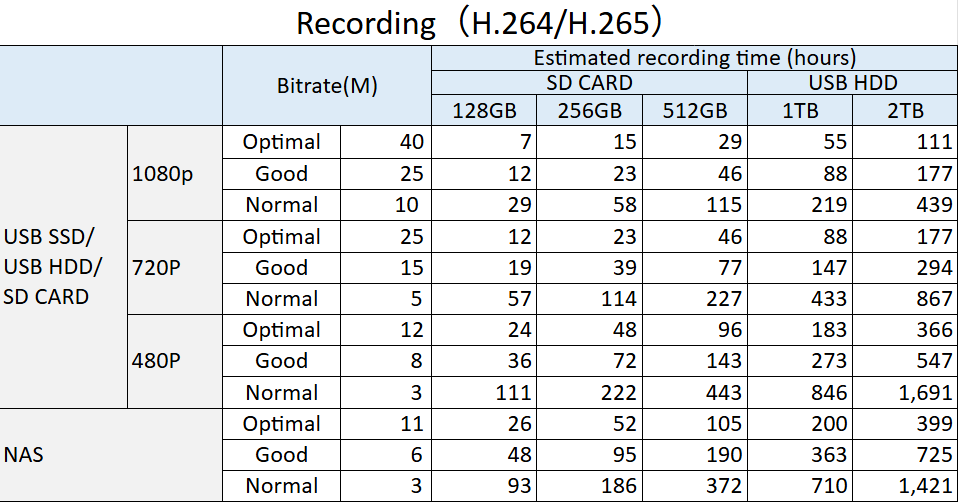

Storage Device and Recording Time Reference Table:
