What are the supported passthrough and capture resolutions and frame rates for each color format on GC553G2/GC575?

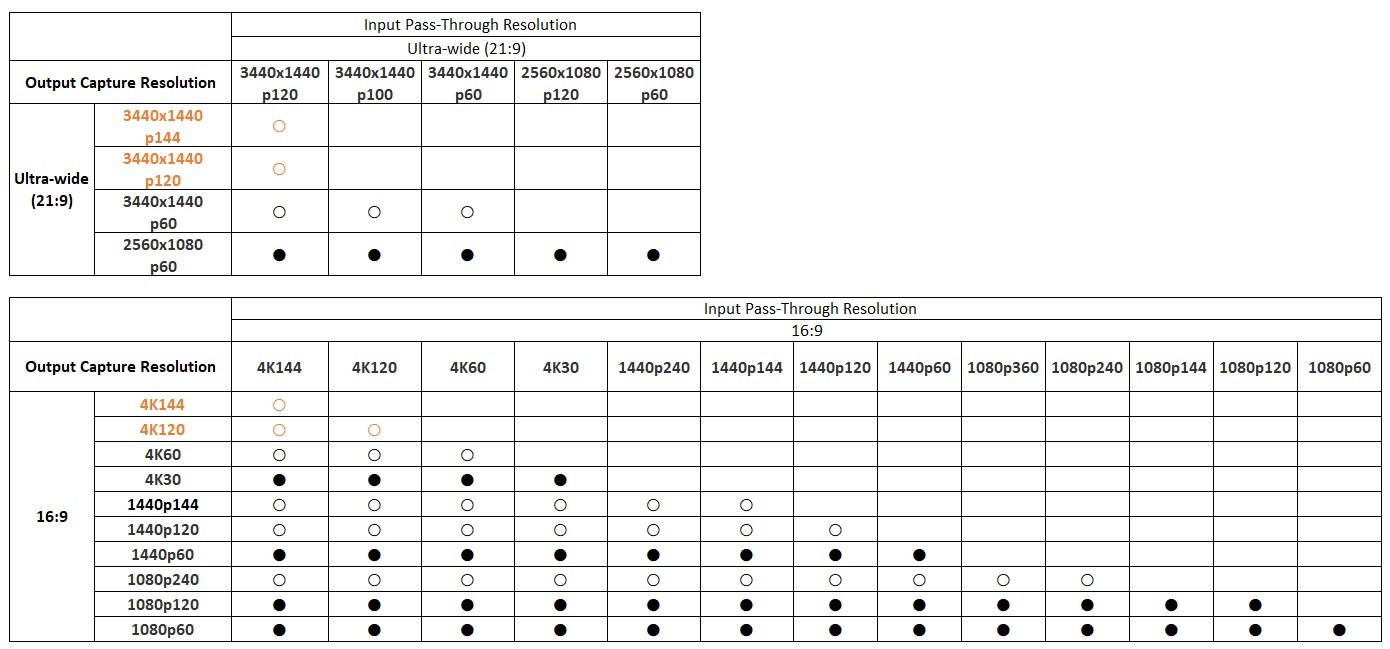

Please refer to the supported passthrough and capture resolutions below. For each input resolution, the supported capture resolution is shown as supported by GC553G2 & GC575.

Note 1: For mac support, please refer to here: Can AVerMedia capture card devices work with Mac computers with M1, M2, and M3 series?

Note 2: The following table information is only applicable to Windows systems.


Orange Color: New firmware uppdate

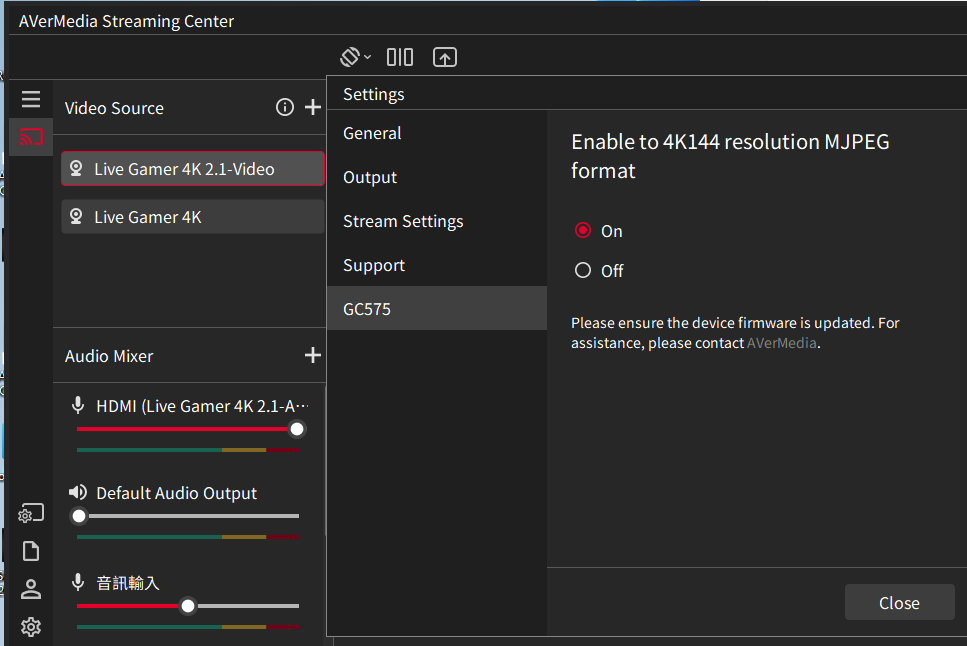

Streaming Center

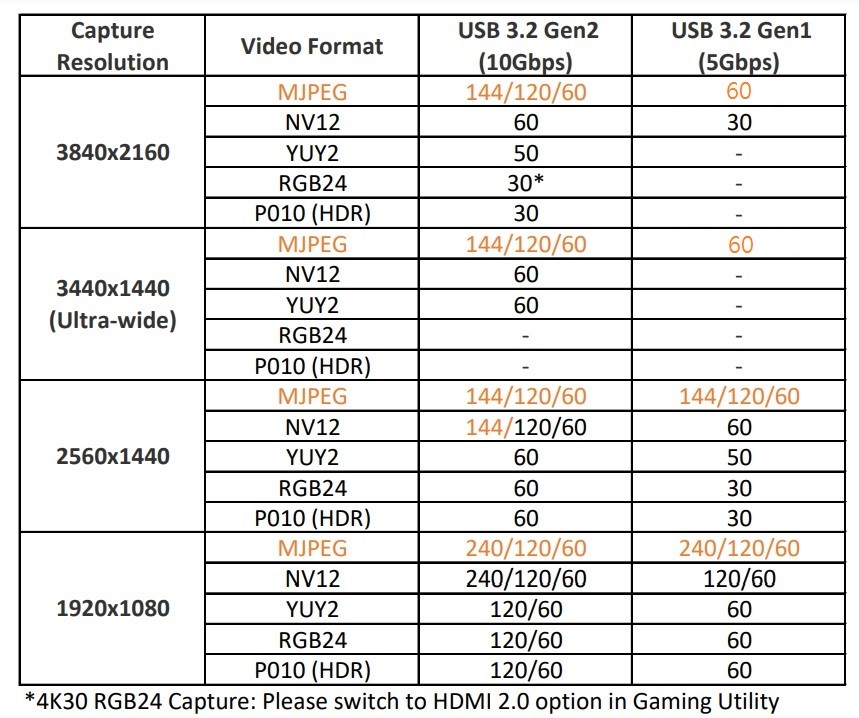

Capture Video Format Specifications

Please refer to the list below for resolutions and frame rates that can be captured in different video formats. The availability of these color formats changes depending on the type of USB port that GC553G2 is connected to (10Gbps, 5Gbps).

Orange Color: New firmware uppdate only for GC553G2/GC575
